Electric Heating 1 KG Joyshine Automatic Potato Chips Production Line Frozen French Fries Making Machine

Name: Electric Heating 1 KG Joyshine Automatic Potato Chips Production Line Frozen French Fries Making Machine
Brand: Joyshine
Price: 6 USD

China Electric Heating 1 KG Joyshine Automatic Potato Chips Production Line Frozen French Fries Making Machine factory

Condition : New

Applicable Industries : Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 Year

Core Components : PLC, Gearbox

Brand Name : Joyshine

Place of Origin : Henan, China

Voltage : 220v, 380v

Power : 1500w

Dimension(L*W*H) : 4000*1100*2200mm

Weight : 1 KG

Warranty : 1 year

Application fields : Flour mill, Seasoning plant, Fruit processing plant, Snack food factory, Frozen food Factory

Machinery Function : banana chips making machines

Raw material : Fruit, Vegetables, Potato

Output product name : banana chips making machines

Key Selling Points : Easy to Operate

Name : banana chips making machines

Material : 304 stainless steel

Heating method : Electric heating

Type : Semi-automatic

Application : Snack food industry

Capacity : 25 kg/h

Final products : French fries, potato chips

Package : Wooden case or packaged in container directly

Custom : Voltage, capacity, heating method

Motor : Siemens or others

Price : $6,600.00/sets 1-2 sets

Contact Now

Why Choose Us

Products Description

Joyshine Automatic Potato Chips Production Line Frozen French Fries Making Machine

Fully Automatic Frozen French Fries Production Process:
No.	Machine Name	Quantity	Power	Dimension	Material
1	PU Belt Elevating Conveyor	1 set	0.75kw	24007001600mm	SUS304
2	Potato Washing & Peeling Machine	1 set	4.37kw	340010001400mm	SUS304
3	Picking Line	1 set	0.75kw	3000700900mm	SUS304
4	French Fries Cutting Machine	1 set	1.5kw	950800950mm	SUS304
5	Water Tank Elevator	1 set	0.75kw	22008001600mm	SUS304
6	Fries Sorting Machine	1 set	2kw	240010001300mm	SUS304
7	Bubble Washing Machine	1 set	6kw	400012001400mm	SUS304
8	Continuous Blanching Machine	1 set	140kw	500012001400mm	SUS304
9	Vibrating Dewatering Machine	1 set	0.36kw	180010001300mm	SUS304
10	Air Drying Machine	1 set	7.5kw	400010001600mm	SUS304
11	Mesh Belt Elevating Conveyor	1 set	0.75kw	20008001300mm	SUS304
12	Continuous Frying Machine	1 set	200kw	600012001400mm	SUS304
13	Vibrating Deoiling Machine	1 set	0.36kw	180010001300mm	SUS304
14	Cooling & Deoiling Machine	1 set	7.5kw	400010001600mm	SUS304
15	Mesh Belt Elevating Conveyor	1 set	0.75kw	20008001300mm	SUS304
16	IQF Freezer Tunnel	1 set	90kw	1150022002200mm	SUS304
17	Elevating Conveyor	1 set	1.1kw	30005001400mm	SUS304
18	Automatic Packing Machine	1 set	6.7kw	500020003400mm	SUS304

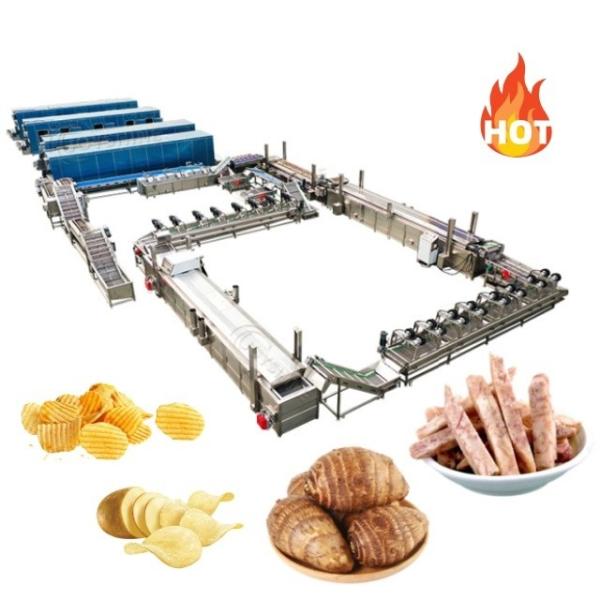

Fully-Automatic French Fries & Potato Chips Production Line

(Finished capacity, Heating source, Production process all can custom made.)

Detailed Description

PU Belt Elevating Conveyor

1.For elevating and conveying fresh potatoes into the next washing peeling machine.

2.Transport materials instead of manpower.

Potato Washing & Peeling Machine

1.Brush and round drum rollers to peel the potatoes thoroughly. 2.Spraying system to clean the potatoes. 3.Spiral design to make sure automatic discharging.

4.Thoroughly washing and peeling the potatoes

Picking Line

1.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine 2.PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

French Fries Cutting Machine

1.Good cutting effect, uniform size.

2.Cutting the potatoes into fries.

3.Custom blade for different sizes, from 7*7 to l2*12mm.

Water Tank Elvator

1.Water as buffer to prevent fries breakage, and simply removing starch. 2.Meanwhile elevating fries into next step.

Bubble Washing Machine

1.Through high pressure water flow and water bubbles to impact and scrub the fries to wash off the starch.

2.This machine is widely used forcleaning fruits and vegetables,etc.

Continuous Blanching Machine

1.Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries.

2.Inhibit enzyme activity, avoid oxidation,

fix color, need additives, citric acid, etc.

Air Drying Machine

1.Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon.

2.Strong wind, remove moisture.Flip the mesh belt to dry both sides evenly.

3.The height of the fan can be adjusted.

Continuous Frying Machine

1.For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life.

2.Half-fried French fries, also suitable for deep-frying all kinds of snacks PLC control, adjustable temperature.

Seasoning Machine

1.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine. 2.PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Quick Freezing Tunnel

1.Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt.

2.Frozen products and prevent adhesion, achieve IQF.

Automatic Packing Machine

1.For packing the finished frozen french fries.

2.10 heads, 14 heads.

Different models for your requirements.

We can produce machines to make Potato chips, French fries, Banana chips/Plantain chips.

Packing & Delivery

Shipping by sea or railway of LCL and FCL.

About Us

We can provide the one-stop turnkey project with the industry-leading technology and R&D team as the front-end, the production and processing team led by more than 10 years of skilled workers the mid-end, quality inspection with near-rigorous standards, and the on-site installation by professional after-sales team.

Facility: 12 sets of shearing equipment, 48 sets of argon arc welding auxiliary equipment, shearing machine, cutting machine, electric welding machine, gantry crane, drilling equipment. Scale: workshop 15000㎡, 10 production lines.

We have more than 20 years of design and development team, 12 product patents and can be customized according to the needs of different customer

Certifications

Our company regularly participates in international mechanical equipment exhibition, let more customers understand the company's product information and quality service, and with Europe, Asia, South America and other regions and countries to develop long-term service and cooperation.

Our team is full of youth and passion for work, and we are capable of serving every customer well. Our company philosophy: to provide perfect product line, to provide every customer with quality service and long-term cooperation.

FAQ

Heating method	Electricity heating or Gas heating.
Machines' Material	Food grade 304 stainless steel.
Voltage	Customize according to your city's voltage
Payment Tems	T/T、Alibaba Trade assurance、L/C、WU、PayPal、Alipay、WeChat Pay.
Transportation	Shipping by sea and railway.
Warranty	2 years
OEM	Customization of nameplate, material, slicing/cutting size, motor brand, packaging, etc.
